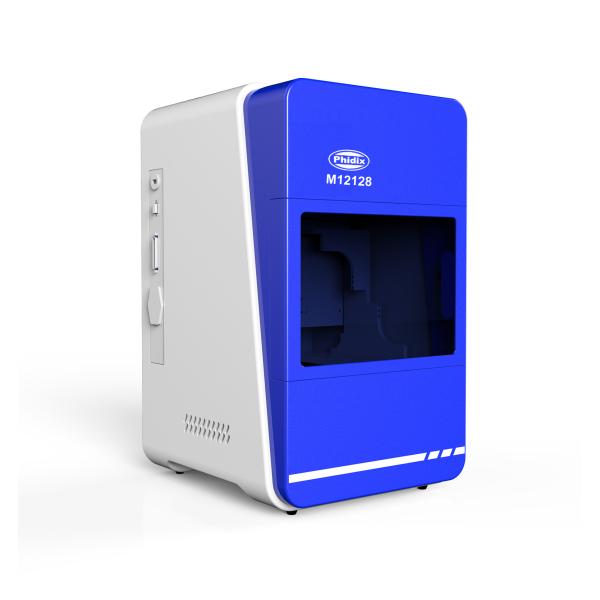

High-magnification imaging clear Full Auto Microscope Slide Scanner
M12128 digital slide scanner, one batch can scan four biological
sample slides at the same time. Complete automatic scanning,
panoramic stitching and depth of field synthesis with one button,
providing clear microscopic images for subsequent identification
and detection. The equipment can be widely used in the observation
and research of biological slices, biological cells, bacteria,
tissue culture, fluid precipitation, etc., and can also observe
other transparent or translucent objects, powders, fine particles
and other objects.
Fully Auto Microscope Slide Scanner
• Motorized Objective Nosepiece
• Motorized Control Light Source
• Motorized XYZ Stage
• Motorized Switch Cameras
• Motorized Switch FL Filters
• Auto Focus, Fly Scan, Fusion Scan
• 100x Objective Auto Drop Oil
• Marco Camera Real Time View
• Maxcope Software With 10 Scan Modes
• Up to 1080 Slides Auto Scan
M12128 Appearance size
● All-in-One Slide Scan Fully Automatic Scan Function With Computer
& Software
● Motorized Nosepiece 6 Holes With Infinity Plan 2x10x20x40x60x100x
Objectives (1606)
● X/Y/Z Motorized Working Stage Moving Range 100×100/200mm
Resolution 0.2um
● Marco Camera Real Time Electrical Map To Overview & Guide To Any
Interesting Point
● 2D Standard Image Stiching Software With Full Range Measuring
Function
| Items | Specification | M12128 |
Main Body
| Nosepiece: Auto Nosepiece 6 Holes, Motorized Controlled By Software | ● |
| Objective: Infinity Plan Fluorescent Objective 20x, N.A.0.60 | ● |
| Optical System | Infinity Optical System | ● |
| BF, Bright Field | ● |
| XYZ Motorized Stage | Resolution 0.2um, Precision Repeat 0.1~5um | ● |
| Z Motorized Control | Z Motorized Up/Down, Auto Focus, Focusing Time 0.5~3s | ● |
| Slide Size | Glass Slide Width 25-26mm, Length 75-76mm, Thickness 0.8-1.4mmm
Cover Slip Thickness 0.12-0.17mm | ● |
| Scan Slides | 4/18/30 Slides Scan One Time | ● |
| Scan Area | Width 26mm x Length 64mm | ● |
| Scan Resolution | 20x (NA 0.75): 0.33um/pixel | ● |
| 40x (NA 0.95): 0.17um/pixel | ● |
| 60x Oil (NA 1.35): 0.11um/pixel | ● |
| 100x Oil (NA 1.4): 0.07um/pixel | ● |
| Scan Speed | 2 Minutes, Under 20x Objective Bright Field View, Scan Area
15x15mm, | ● |
| 4 Minutes, For Single Layer Scan Including Auto Focus Time | ● |
| Scan Function | Auto Slide Scan, Zoom In/Out in Scanning, Free Remark On Picture, | ● |
| Super Depth of Field Fusion Up to 200~500 Layers, 2D Image
Stitching, | ● |
| 3D Image Stitching | ○ |
| Camera | 1 Micro Digital Camera 5.0M USB 3.0 | ● |
| Power Supply | Wide Voltage 100V-240V | |
| Computer | Dell Xeon W-2265 12 Core 3.5GHz, 128G+1TNVMe 4T, RTX4000-8G, 27"4K, Pre-Installed Software. Standard Computer For 2DF, 3D Version
Software | ○ |
Dell i5 64G 256G+1T, 2G Graphic, 27"4K, Pre-Installed Software. Standard Computer For 2D, 2DB Version Software | ● |
| Software | 3D, Add 3D Scan, For XYZ Stage+Computer | ○ |
| 2D, Plane Scan,For XY or XYZ Stage+Computer | ● |
| 2DF, Add Up/Down Fusion Scan, For XYZ Stage+Computer | ○ |
| 2DB, Add Bevel Scan, For XYZ Stage+2C Computer | ○ |
| Image Format | VSI, JPEG,TIFF | ● |
Motorized Working Stage | XYZ Motorized Working Stage,2-Phase Stepping Motor, High Precision
Module, Aluminum Alloy Material,Surface Anodized,Anti-Corrosion And
Scratch-Resistant | ● |
Note: ● means standard, ○ means optional
Full Auto Microscope Scanning Software
2D 2DB
X/Y Motorized X/Y/Z Motorized
2D Plane Scan 2D Bevel Scan
2DF 3D
X/Y/Z Motorized X/Y/Z Motorized
2D Fusion Scan 3D Scan
