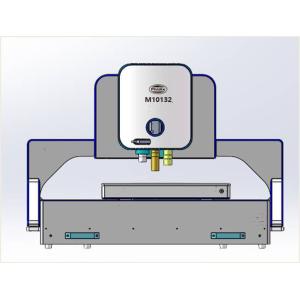

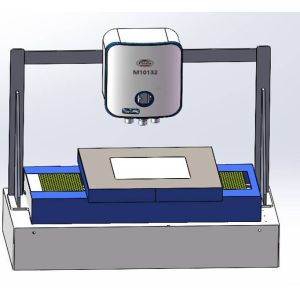

M10132 Industrial Automatic 3D Microscope Gantry Industrial Design
M10132 is a microscope system that integrates
observation+measurement+recording. It integrates stereo
microscope,metallurgical microscope,3D measuring microscope into
one, through leading automatic lighting observation, motorized
platform with large moving range 300x300mm,to fully functional user
interface,in a real sense,from macro-scale imaging to micro-scale
detailed measurement.
Features:Take optical focusing as the measuring principle,and adopt
high-precision optical detection method for precise dimension
measurement. Not only can the target image be aligned,but also the
surface state of the measurement point can be observed,and the
height,length,diameter,circumference,etc.can be measured.High
magnification,suitable for the
Measurement of precision products,and can also be used as a
high-power microscope.
3D Full Auto Scanning Measurement System
The new M10132 Research-grade Metallurgical Microscope has upgraded
to XYZ motorized working stage model,combined with the powerful
2D/3D software,which integrates a number of firsts.From appearance
to performance,it closely follows the international leading design
trend.We will continue to provide customers with complete 3D
industrial inspection solutions.

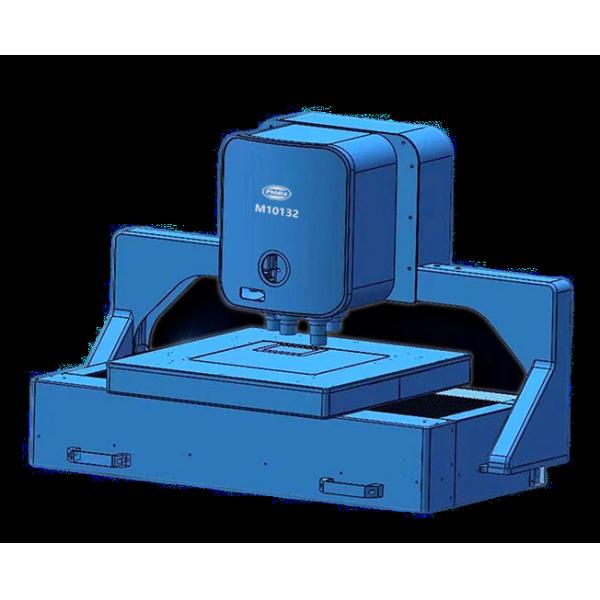

M10132 Industrial Automatic 3D Microscope
•Gantry Type Motorized Industry Microscope Measuring System With
Computer&Software
•Motorized Nosepiece 6 Holes With Infinity Plan LWD Metallurgical
5x10x20x50x100x
•X/Y/Z Motorized Working Stage Moving Range
300x300/20mmResolution15um
•Marco Camera Real Time Electrical Map To Overview&Guide To Any
Interesting Point
•3D Advanced Version Software Include Full Auto 2D&3D Image
Stitching&Measuring Function
| Items | Specification | M10127 |
Main Body
| Nosepiece: 6 Holes Coding Motorized Nosepiece | ● |
| Objective: Infinity LWD Semi-APO Metallurgical
2x,5x,10x,20x,50x,100x | ● |
| LED Life Time: 40000 Hours | ● |
| View Method: Transmit/Reflect LED | ● |
| View Method: Polarizing | ○ |
| View Method: DIC | ○ |
XYZ Motorized Stage
| Repeatability: 15um | ● |
| Repeatability: 3um | ○ |
| Moving Speed: 12mm/sec(max) | ● |
| Moving Range: 300x300mm | ● |
| Stage Size: 550X570X65mm | ● |
| Stage Load: 10kg | ● |
| Z Motorized Control | Auto Focus Speed 0.3 Second(Fastest),Normally 1-3 Seconds | ● |
| Z Resolution: 0.1um | ● |
| Moving Speed: 20mm/sec(max) | ● |
| Moving Range: 100mm | ● |
| Micro Camera | Digital Camera: 9.0M USB3.0 GS Shutter Digital Camera,1’’ CMOS, FPS
15@5440x3648, 50@2736x1824, 60@1824x1216 | ● |
| Round Stage | 360° Rotatable, 30°Incline Angle Adjustable | ○ |
| Marco Camera | View Field Up To 70mm*90mm, Resolution 0.2mm | ○ |
| Computer | Dell Xeon W-2265 12 Core 3.5GHz, 128G+1TNVMe 4T, RTX4000-8G, 27"4K, Pre-Installed Software. Standard Computer For 2DF, 3D Version
Software | ● |
Dell i5 64G 256G+1T, 2G Graphic, 27"4K, Pre-Installed Software. Standard Computer For 2D, 2DB Version Software | ○ |
| Software | 3D, Add 3D Scan, For XYZ Stage+Computer | ● |
| 2D, Plane Scan,For XY or XYZ Stage+Computer | ○ |
| 2DF, Add Up/Down Fusion Scan, For XYZ Stage+Computer | ○ |
| Image Format | Output: JPEG,TIFF | ● |
Motorized Working Stage | XYZ Motorized Working Stage,2-Phase Stepping Motor, High Precision
Module, Aluminum Alloy Material,Surface Anodized,Anti-Corrosion And
Scratch-Resistant | ● |
Note: ● means standard, ○ means optional
Full Auto Microscope Scanning Software
2D 2DB
X/Y Motorized X/Y/Z Motorized
2D Plane Scan 2D Bevel Scan
2DF 3D
X/Y/Z Motorized X/Y/Z Motorized
2D Fusion Scan 3D Scan
