50X 1000X Binocular Optical Metallurgical Microscope Tinocular Bright Dark Field

Ask Lasest Price
Brand Name :	Phidix
Model Number :	M10129
Certification :	IATF16949，CE
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	1000 PCS/Month
Delivery Time :	15-20 Work Days

Add to Cart

Product Details
Company Profile

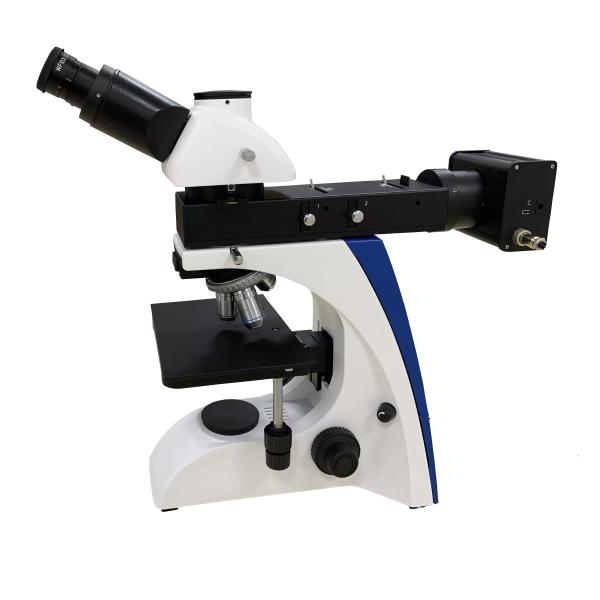

50X 1000X Binocular Optical Metallurgical Microscope Tinocular Bright Dark Field

For Both Bright Field & Dark Field Use 50X-1000X Tinocular Metallurgical Microscope

M10129 For Both Bright Field & Dark Field Use 50X-1000X Tinocular Metallurgical Microscope. Camera can be used for data storage and sharing. It’s an updated verion for applications of laboratories, research institutes, colleges and universities to do pathology, bacteriology observation, teaching and research, analysis and appraisal of materials in factories and laboratories.

Features:

Dark field objective,Make observation in dark & bright field.
Oversize view field eyepiece, view field up to 22mm for comfortable observation.
Trinocular head with dual transform.
Light distribution (both): 100: 0(100% for eyepiece), 80:20(80% for trinocular head and 20% for eyepiece).
Stage with fast lowering unit can increase 50mm for working distance, more convenient for observing big size sample.
Oversized three-layer mechanical stage provides more choice for samples.

Item	Specification		M10129A	M10129B	M10129C	M10129D
Eyepiece	WF10X／22mm (adjustable)		●	●	●	●
Eyepiece	WF10X／22mm (adjustable , reticule 0.1mm)		●	●	●	●
Metallurgical LWD Infinity Plan Objective	LMPlan FL 5×/0.15 (Semi Apochromatic Objective)	W.D=21.00mm	●		●
	LMPlan FL 10×/0.30 (Semi Apochromatic Objective)	W.D=20.00mm	●		●
	LMPlan FL 20×/0.40 (Semi Apochromatic Objective)	W.D=15.00mm	●		●
	LMPlan FL 50×/0.55 (Semi Apochromatic Objective)	W.D=10.00mm	●		●
	LPL80X／0.80	W.D=0.85mm	○		○
	LMPlan FL 100×/0.85 (Dry) (Semi Apochromatic Objective)	W.D=3.00mm	○		○
Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field	M PLAN 5×／0.13 BD	W.D=7.30mm		●		●
	M PLAN 10×／0.25 BD	W.D.= 11.50mm		●		●
	M PLAN 20×／0.40 BD	W.D.= 5.60mm		●		●
	M PLAN 50×／0.70 BD	W.D.= 1.60mm		●		●

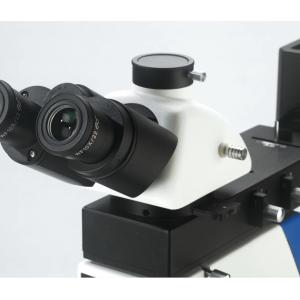

Seidentopf Trinocular Head	Inclined 30°,rotatable 360°, Interpupilary distance: 48mm～76mm, Light distribution (both): 100: 0 (100% for eyepiece) 80:20 (80% for trinocular head and 20% for eyepiece)		●	●	●	●
Nosepiece	Quintuple		●		●
Nosepiece	Quadplex(specially for bright /dark field objectives M26x1/36")			●		●
Mechanical Stage	Stage size: 200mm x 150mm, Travel range: 77mm x 52mm Stage fast lowering unit: Up-Down moving range can be increased 50mm.		●	●
Mechanical Stage	Stage size: 182mm x 140mm, Travel range: 77mm x 52mm				●	●
Polarizing Unit	Polarizer /Analyzer		●	●	●	●
Condenser	Abbe N.A.1.25, with Iris Diaphragm.				●	●
Coaxial Coarse and Fine Focusing Unit	Coarse stroke: 25mm, Fine stroke per rotation: 0.2mm, fine division 2 μm, Tightness adjustment, upper distance limiter.		●	●	●	●
Reflecting Illumination	5WLED lamp (Input voltage:100V～240V)		●		●
Reflecting Illumination	12V/50W Halogen lamp (Input voltage:100V～240V)		○	●	○	●
Transmitting Illumination	5WLED lamp (Input voltage:100V～240V)				●	○
Transmitting Illumination	6V/30W Halogen lamp (Input voltage:100V～240V)				○	●
Filter	Blue		○	○	○	○
Filter	Green/ Amber/ Grey		○	○	○	○
C-Mount	1 X /0.75X/0.5X( Focus Adjustable)		○	○	○	○

Note: ● means standard, ○ means optional

Dark field objective,Make observation in dark & bright field.

Oversize view field eyepiece, view field up to 22mm for comfortable observation.

Trinocular head with dual transform.

Light distribution (both): 100: 0(100% for eyepiece)80:20(80% for trinocular head and 20% for eyepiece)
