Measuring Microscope

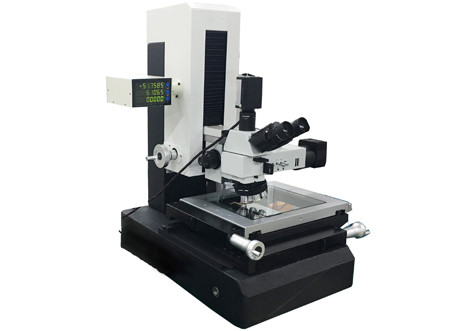

M10106 Measuring Microscope Video Measuring Microscope is an integrated high-magnification,
micron-industry-aimed measuring instruments. Combined with powerful
microscopic inspection technology, it has been widely applied in
many fields.
Features:
- Used as observational microscope to inspect the surface finish of
work-piece by comparative law, identify ore samples in
metallurgical industry, photomechanical print test, inspection of
textile fibers and so on.
- To measure length in Cartesian coordinates. For example,
measuring pitch, the base surface distance, engraved line distance,
engraved line width, slot width, slit width, the outer diameter of
the through-hole and so on.
- To measure angle, for example, angle measurement for dials,
templates, gauges, drilling template and those parts with complex
structure.
- With PC and powerful metrology software, not only a microscope,
but also a vision measuring system, can achieve professional
measurement data management.
| Item | Description / Value |
| Optical System: | Infinity chromatic aberration correction optical system |
| Head: | Trinocular |
| Measuring Range: | X-axis: 400mm minimum, Y-axis: 300mm minimum, Z-axis: 200 mm
minimum |
| Minimum resolution: | 0.5/0.1μm |
| Optical Part: | Professional differential interference optical head |
| Multilayer coating technology ensures clarity |
| Light path and high power objective lens observation |
| It is equipped with LED surface light and bottom light. |
| Transmission System: | Precision Grinding of C3 ball screw |
| Camera: | DS-Vil Color Camera Head 2 million pixel HD CCD |
| Objective lens: | M Plan Apo HL 5X, 10X, 20X, 50X |
| Stage: | 100x100mm Precise Stage |
| Light source system: | 5W LED up and down light source |
| Polarization system |
| DIC |
