Dark Field Polarizing Lab Biological Microscope ODM With 20mm Eyepiece

Ask Lasest Price
Brand Name :	Phidix
Model Number :	M12139
Certification :	IATF16949，CE
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	1000 PCS/Month
Delivery Time :	15-20 Work Days

Add to Cart

Product Details
Company Profile

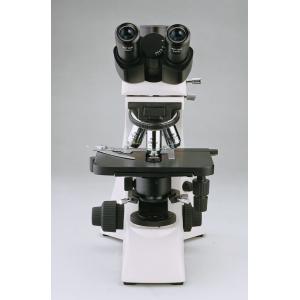

Dark Field Polarizing Lab Biological Microscope ODM With 20mm Eyepiece

40X-1000X Trinocular Biological Microscope Integrated Dark Field Polarizing Fluorescence Phase Contrast

what is the difference between binocular and trinocular microscopes

M12139 40X-1000X Trinocular Biological Microscope Integrated Dark Field Polarizing Fluorescence Phase Contrast. This series microscope integrated the frequently-used functions including dark field, polarizing, fluorescence and phase contrast. It will be very convenient for the observers to change observing type to get an ideal image.

Features:

- Multi-functional, easier to exchange.

- The maxium magnification is 1600X by the eyepieces WF 16X /13 mm.

- Easy to move and keeping.

- Low position operation, convenient for long-term using.

Items	Description / Value		M12139
Eyepiece	WF10×／20mm (23.2mm)		●●
Infinity Plan Objectives	PLAN 4×／0.10	W.D.=12.10mm	●
	PLAN 10×／0.25	W.D.=4.64mm	●
	PLAN 20×／0.40(S)	W.D.=2.41mm	●
	PLAN 40×／0.66(S)	W.D.=0.65mm	●
	PLAN 100×／1.25(S, Oil)	W.D.=0.12mm	●
	PLAN 2.5×／0.07	W.D.=8.47mm	○
	PLAN 60×／0.80(S)	W.D.=0.33mm	○
	PLAN 100×／1.15(S, W)	W.D.=0.19mm	○
Infinity Plan Semi Apochromatic Objective	UPlanFLN 10X/0.30	W.D.=7.68mm	○
	UPlanFLN 20X/0.50	W.D.=1.96mm	○
	UPlanFLN 40X/0.75	W.D.=0.78mm	○
	UPlanFLN 100X /1.30 (Oil)	W.D.=0.15mm	○
Seidentopf Binocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm		●
Seidentopf Trinocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm Light Distribution: 100: 0 / 80:20		○
Nosepiece	Quintuple		●
Mechanical Stage	Stage Size: 175mm×145mm,Travel: 78mm×55mm Coaxial Coarse and Fine Focusing Knobs Two Slide Holder		●
	Integrated stage Stage size: 182 mm×140mm,Travel range: 77mm×52mm Two-slide holder		○
Condenser	Abbe N.A. 1.25 with iris diaphragm.		●
	Swing Out Condenser, N.A. 0.9/0.13, with iris diaphragm.		○
Koehler Illumination Wide voltage input: 100V～240V Field diaphragm , center adjustable	12V/20W Halogen Lamp		○
	6V/30W Halogen Lamp		○
	3W-LED Illumination		●
Filter	Blue		●
	Green /Amber /Grey		○
C-mount	1×/0.5×/0.75×C-mount (focus adjustable		○
Fluorescence Attachment	Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp.		○
	Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp.		○
Phase Contrast Unit	Quintuple hole turret 10× /20× /40× /100× phase contrast objective		○
	Independent slot 10× /20× /40× /100× phase contrast objective		○
Dark Field Unit	Dark field condenser (dry),apply to 4×- 40× objective		○
	Dark field condenser (wet),apply to 100× objective		○

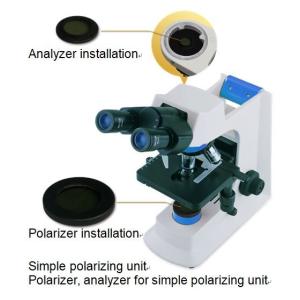

Polarizing Attachment	Analyzer / Polarizer		○

Note: ● means current configuration, ○ means optional

Packing Size: 542mm×265mm×355mm, Gross Weight: 12 kgs, Net Weight: 10 kgs

Biological Microscope Size(mm)
Dark Field Polarizing Lab Biological Microscope ODM With 20mm Eyepiece

Fluorescence Microscope Size(mm)

M12139-Series Biological Microscope General Layout Diagram
