5MP Pixel Digital Head Trinocular Microscope 1000X Fine Focusing

Ask Lasest Price
Brand Name :	Phidix
Model Number :	M12138
Certification :	IATF16949，CE
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	1000 PCS/Month
Delivery Time :	15-20 Work Days

Add to Cart

Product Details
Company Profile

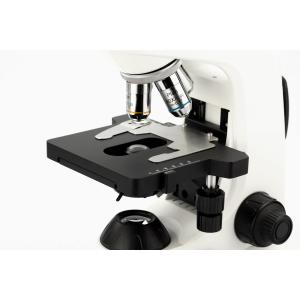

5MP Pixel Digital Head Trinocular Microscope 1000X Fine Focusing

Trinocular Biological Microscope 40X-1000X with 5MP Pixel Digital Head

where to buy a biological microscope

M12138 Trinocular Biological Microscope 40X-1000X with 5MP Pixel Digital Head. This series could use 5MP pixel digital head. The image will be observed, storaged, edited and shared by using PC. It will be very convenient for the observers to change all the image data into digital type and improve the efficiency greatly.

Features:

- Easier to observe and process the image data by using PC.

- The maxium magnification is 1600X by the eyepieces WF 16X /13 mm.

- It has optional parts for Dark field and Polarizing use.

- Easy to move and keeping.

- Low position operation, convenient for long-term using.

Items	Description / Value	M12138
Main Body		●
Eyepiece	WF10X/20mm (High eyepoint)	●●
Infinity Objective	EPLAN 4X/0.10	●
	EPLAN 10X/0.25	●
	EPLAN 40X/0.65(S)	●
	EPLAN 100X/1.25(S,Oil)	●
	PLAN 4X/0.10	○
	PLAN 10X/0.25	○
	PLAN 20X/0.40(S)	○
	PLAN 40X/0.66(S)	○
	PLAN 60X/0.80(S)	○
	PLAN 100X/1.25(S,Oil)	○
	PLAN 100X/1.15(S,Water)	○
Butterfly Head	Seidentopf Binocular Head, Inclined 30°,Rotatable 360°, Interpupilary Distance: 48-75mm	○
	Seidentopf Trinocular Head, Inclined 30°,Rotatable 360°, Interpupilary Distance: 48-75mm Light Distribution: 20:80	●
	5 MP Pixel Digital Head 1/2’’CMOS color sequential scanning. USB2.0 Light Distribution: 20:80	○
Nosepiece	Quadplex	●
Mechanical Stage	Size 145mmX140mm, Travel Range:76mmX52mm, Scale: 0.1mm, Two Slide Holder	●
Mechanical Stage	Rackless(Integrated) stage, Size: 140×135mm,Travel Range: 75×35mm, Two-slide holder	○
Abbe Condenser	N.A.1.25,With iris Diaphragm	●
Coaxial Coarse and Fine Focusing Knobs	Coarse Focusing Travel Range: 25mm Fine Focusing Travel Range: 2µm/division	●
Aspheric Illumination	3W LED Illumination,Voltage: 100V-240V	●
Dark Field Unit	Dark Field Ring (Dry, N.A.0.9)	○
Polarizing Unit	Analyzer, Polarizer	○
C-mount	1×/0.75×/0.5×C-mount(Adjustable)	○
Wire Winding Device		●

Note: ● means current configuration, ○ means optional

Packing Size: 345x 260x 455mm; Gross Weight: 6.7 kg; Net Weight: 5.3 kg

Size (mm)

5MP Pixel Digital Head Trinocular Microscope 1000X Fine Focusing

Rackless(Integrated) stage:

5MP Pixel Digital Head Trinocular Microscope 1000X Fine Focusing

0.5X, 1X C-Mount

5MP Pixel Digital Head Trinocular Microscope 1000X Fine Focusing
