M12137 40X-1000X Binocular Biological Microscope Upgradable to Digital
version of IPAD or Notebook PC. This series could be upgraded to digital version, which means that
observing by IPAD and notebook PC is available. It will be very
convenient for the observers to get a bigger image and easier to
see more details.
Features:
- Easier to upgrade to observe by IPAD and notebook PC.
- The maxium magnification is 1600X by the eyepieces WF 16X /13 mm.
- It has optional parts for Dark field and Polarizing use.
- Easy to move and keeping.
- Low position operation, convenient for long-term using.
| Items | Description / Value | M12137 |
| Main Body | | ● |
| Eyepiece | WF10X/20mm (High eyepoint) | ●● |
| Infinity Objective | EPLAN 4X/0.10 | ○ |
| EPLAN 10X/0.25 | ○ |
| EPLAN 40X/0.65(S) | ○ |
| EPLAN 100X/1.25(S,Oil) | ○ |
| PLAN 4X/0.10 | ● |
| PLAN 10X/0.25 | ● |
| PLAN 20X/0.40(S) | ○ |
| PLAN 40X/0.66(S) | ● |
| PLAN 60X/0.80(S) | ○ |
| PLAN 100X/1.25(S,Oil) | ● |
| PLAN 100X/1.15(S,Water) | ○ |
Butterfly Head | Seidentopf Binocular Head, Inclined 30°,Rotatable 360°, Interpupilary Distance: 48-75mm | ○ |
Seidentopf Trinocular Head, Inclined 30°,Rotatable 360°, Interpupilary Distance: 48-75mm Light Distribution: 20:80 | ○ |
5 MP Pixel Digital Head 1/2’’CMOS color sequential scanning. USB2.0 Light Distribution: 20:80 | ● |
| Nosepiece | Quadplex | ● |
| Mechanical Stage | Size 145mmX140mm, Travel Range:76mmX52mm, Scale: 0.1mm, Two Slide
Holder | ● |
Rackless(Integrated) stage, Size: 140×135mm,Travel Range: 75×35mm, Two-slide holder | ○ |
| Abbe Condenser | N.A.1.25,With iris Diaphragm | ● |
| Coaxial Coarse and Fine Focusing Knobs | Coarse Focusing Travel Range: 25mm Fine Focusing Travel Range: 2µm/division | ● |
| Aspheric Illumination | 3W LED Illumination,Voltage: 100V-240V | ● |
| Dark Field Unit | Dark Field Ring (Dry, N.A.0.9) | ○ |
| Polarizing Unit | Analyzer, Polarizer | ○ |

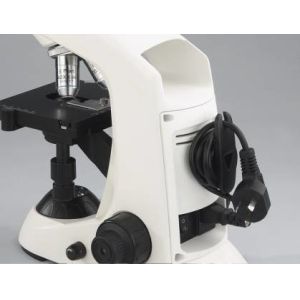

| Wire Winding Device | | ● |
Note: ● means current configuration, ○ means optional
Packing Size: 345x 260x 455mm; Gross Weight: 6.7 kg; Net Weight:
5.3 kg
Easier to upgrade to digital version of notebook PC
Dark field unit Polarizing unit
