18mm Eyepiece 40X Binocular Biological Microscope With 3W LED Lamp

Ask Lasest Price
Brand Name :	Phidix
Model Number :	M12134
Certification :	IATF16949，CE
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	1000 PCS/Month
Delivery Time :	15-20 Work Days

Add to Cart

Product Details
Company Profile

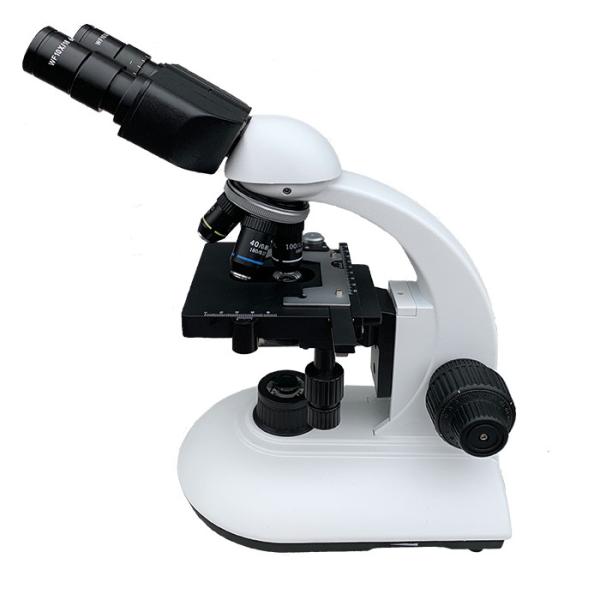

18mm Eyepiece 40X Binocular Biological Microscope With 3W LED Lamp

40X-1000X Binocular Biological Microscope with Dark field and Polarizing Options

M12133 40X-1000X Binocular Biological Microscope with Dark field and Polarizing Options has a maxium magnification 1600X by the eyepieces WF 16X /13 mm, which leads to a wider magnification range for the researchers to choose. This series biological microscope offers outstanding industry leading optics, illumination, and performance to meet the expectations of professionals and educational market. With its solid cast metal body & head, metal internal gears and LED illumination system the microscope is built to last.

Features:

- Various eyepieces to choose.

- The maxium magnification is 1600X by the eyepieces WF 16X /13 mm.

- It’s easy to upgrade bo binocular and trinocular version.

- 4X 10X 40X and 100X Achromatic objectives.

Items	Description / Value	M12134
Eyepiece	WF 10X /18 mm(Pointer is optional)	●●
	WF 10X /18 mm(Pointer)	○○
	WF 10X /18 mm(adjustable, 0.1 mm)	○○
	WF 16X /13 mm	○○
	WF15X /13 mm	○○
Achromatic Objective	4X /0.10, W.D=18.6mm	●
	10X /0.25, W.D=6.5mm	●
	40X /0.65 (S), W.D=0.47mm	●
	100X /1.25(S, Oil), W.D=0.07mm	●
	20X /0.40, W.D=1.75mm	○
	60X /0.80(S), W.D=0.10mm	○
Monocular Head	Inclined 30°, Rotatable 360°	●
Butterfly Seidentopf Trinocular Head	Inclined 30°, Rotatable 360°, Interpupilary Distance 48-75mm, Light Distribution 20:80	○
Nosepiece	Quadplex	●
Focusing Knobs	Coaxial Coarse and Fine Focusing Knobs Travel Range: 22mm, Scale: 2µm	●
Mechanical Stage	Stage Size:125X115mm, Travel: 35X75mm	●
Condenser	Abbe N.A. 1.25 (Iris Diaphragm)	●
Dark Field Ring	Available For 4X-40X Objective	○
Polarizing Attachment	Analyzer / Polarizer	○
Mirror	Plano-concave mirror	○
Base	3W LED Illumination, Voltage: 100V-240V	●

Note: ● means current configuration ○ means optional

Packing Size: 337mmx 242mmx 417mm; Gross Weight: 6.5 kg; Net Weight: 5.0 kg

18mm Eyepiece 40X Binocular Biological Microscope With 3W LED Lamp

0.5X/1X C-Mount Plano-concave mirror

18mm Eyepiece 40X Binocular Biological Microscope With 3W LED Lamp

Simple polarizing unit polarizer, analyzer for simple polarizing unit

18mm Eyepiece 40X Binocular Biological Microscope With 3W LED Lamp
