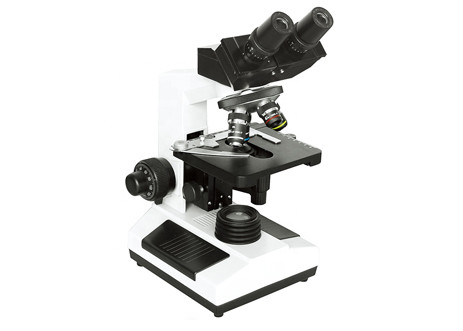

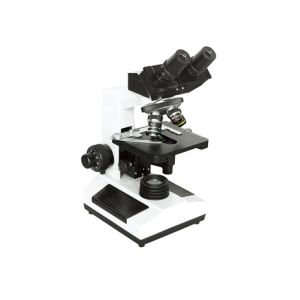

    WF10X/18mm L000X Trinocular Phase Contrast Microscope Education Binocular Light

    Ask Lasest Price
    Brand Name : Phidix
    Model Number : M17106
    Certification : IATF16949,CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 PCS/Month
    Delivery Time : 15-20 Work Days
    • Product Details
    • Company Profile

    WF10X/18mm L000X Trinocular Phase Contrast Microscope Education Binocular Light


    40X-1000X Binocular Economical Phase Contrast Microscope For Education


    M17106 40X-1000X Binocular Economical Phase Contrast Microscope For Education. M17106 is a phase-contrast microscope special designed for school education application.


    Features:


    - Economical version for school education application.

    - Brightness adjustable, 6V 20W halogen illumination and Plan-concave mirror.

    - Seidentopf Binocular Head, 30° Inclined, Anti-Mould System.


    ItemDescription / Value
    Eyepiece:WF10X/18mm
    Objective:Infinity Achromatic objective 4X, 10X, 100X
    Nosepiece:Four-hole converter
    Magnification:40X~l000X
    Stage:Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm
    Focusing mechanism:Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, Coarse Focusing Stroke 37.7mm/Rotation, With Tension Adjustment, With
    Up Limit
    Condensor:N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
    Phase Contrast:

    Phase Contrast Objective 40x;

    Phase Contrast Diaphragm 40x;

    Abbe Condenser N.A.1.25;

    Centering Telescope 10x;

    Green Filter.

    Filter:Blue, Yellow, Green
