Jewelry Identification Dark Field Microscope With Camera Gemological Polarizing Gem

    Buy cheap Jewelry Identification Dark Field Microscope With Camera Gemological Polarizing Gem from wholesalers

    Buy cheap Jewelry Identification Dark Field Microscope With Camera Gemological Polarizing Gem from wholesalers
    • Buy cheap Jewelry Identification Dark Field Microscope With Camera Gemological Polarizing Gem from wholesalers

    Jewelry Identification Dark Field Microscope With Camera Gemological Polarizing Gem

    Ask Lasest Price
    Brand Name : Phidix
    Model Number : M18105
    Certification : IATF16949,CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 PCS/Month
    Delivery Time : 15-20 Work Days
    • Product Details
    • Company Profile

    Jewelry Identification Dark Field Microscope With Camera Gemological Polarizing Gem


    Dark Field And Polarizing Gem Microscope For Jewelry Identification With Gooseneck LED

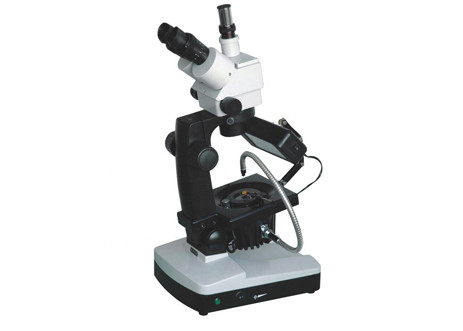

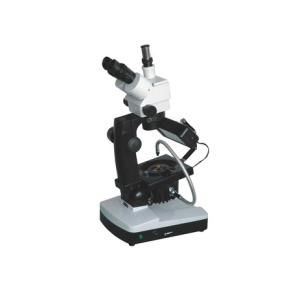

    M18105 Dark Field And Polarizing Gem Microscope For Jewelry Identification With Gooseneck LED It is a research microscope with dark field and polarizing. It can be applied to different industrial fields, special for jewelry identification usage.


    Features:


    - Gem Microscope was designed for gem identification.

    - It has a dark field bottom light and a flexional gooseneck LED light. A wire clip can reduce the shadow and make multi-angle observing possible.

    - With a polarizer the inside structure can be seen.


    ItemDescription / Value
    Contrast method:Bright field, polarizing, Dark field
    Magnification:Standard: 7-45X
    View tube:Binocular, or trinocular, 45 ° inclined
    Eyepiece:Standard: WF10X(Φ22mm)
    Objective:0.7-4.5X
    Working distance:95mm
    Illumination:Bottom dark field light and gooseneck LED
    Auxiliary objective (Optional):

    0.75X, working distance 105mm;

    1.5X, workign distance 47mm;

    2X, workign distance 33mm.

    Stage baseplate:With gem holder
    Camera adapter:1X C-mount
    Camera:Optional.

    Jewelry Identification Dark Field Microscope With Camera Gemological Polarizing Gem
