RMS Threaded Inverted Optical Microscope Light WF10X/22mm Living Cell

Ask Lasest Price
Brand Name :	Phidix
Model Number :	M13106
Certification :	IATF16949，CE
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	1000 PCS/Month
Delivery Time :	15-20 Work Days

Add to Cart

Product Details
Company Profile

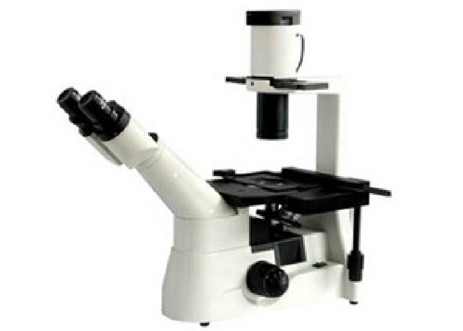

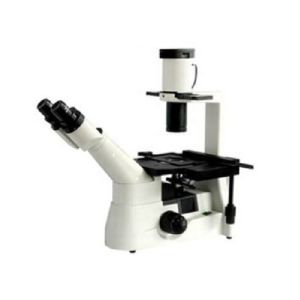

RMS Threaded Inverted Optical Microscope Light WF10X/22mm Living Cell

Inverted Biological Microscope For Living Cell Culturing

M13106 Inverted Biological Microscope For Living Cell Culturing. As an inverted biological microscope, M13106 is specially design for living cell culture observing during science and biological research.

Features:

- To check and observe the cell culturing and splitting status, an inverted microscope is needed.

- With a camera researcher, it can take a picture or record a video and save it in a computer for analysis.

Item	Description / Value
Optical system:	Infinity-corrected optical system; RMS-threaded objectives with 45 mm parfocal distance.
Application:	For observing living cells or organisms in culture vessel.
Illumination:	Long life Adjustable-intensity LED (>50,000-hour life per light cube).
View tube:	Trinocular phototube tube, 30 ° inclining. IPD adjustment: 54mm ~ 75mm, Diopter adjustment: ± 5
Observation:	Fluorescence and transmitted light (bright-field and phase-contrast).
Eyepiece:	Extra wide field eyepiece WF PL10 × (Φ22mm).
Objective:	Infinity Plan long working distance LWD 4X, 10X, 20X, 40X. Optional: 2X (no phase).
Nosepiece:	Five-position/quintuple, manual control.
Condenser:	3-position turret for bright field and phase contrast. Working distance: 72mm, NA 0.3.
Stage:	Fixed stage and Optional mechanical stage. With X-Y axis controls and vessel holder framework. Fixed stage size:250×160mm, moving range: 120mm ×80mm.
Focusing system:	Coaxial focus knobs with tension control. Coarse focus: 38 mm/rev.
LCD display:	12.1” high-resolution (1920 x 1080 pixels) color monitor with adjustable tilt.
Camera:	1/2” 2,048 x 1,536, 3.1 megapixels. 24-bit full-color TIFF or PNG; JPEG, BMP (2,048 x 1,536 pixels).
Image software:	Embedded operating system with imaging software for image capturing and saving by mouse.
Output ports:	2 USB 2.0 ports.
Power supply:	220-240V, 50/60Hz, Schuko type, plug configurations type F.

RMS Threaded Inverted Optical Microscope Light WF10X/22mm Living Cell
