PL10X22mm Transmission Light Microscope 20x 50x Digital Polarizing Microscope

Ask Lasest Price
Brand Name :	Phidix
Model Number :	M14102
Certification :	IATF16949，CE
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	1000 PCS/Month
Delivery Time :	15-20 Work Days

Add to Cart

Product Details
Company Profile

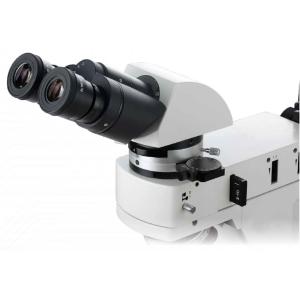

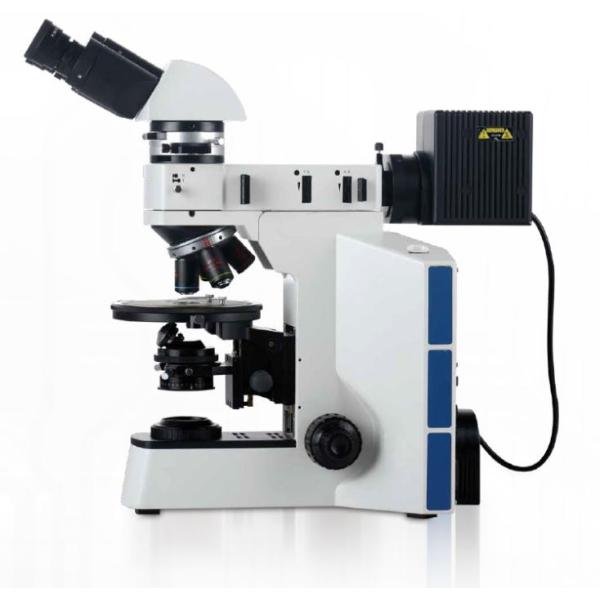

PL10X22mm Transmission Light Microscope 20x 50x Digital Polarizing Microscope

Optical Trinocular Industrial Polarizing Microscope

M14102 Optical Trinocular Industrial Polarizing Microscope Polarizing microscope is an indispensable instrument for the research and identification of birefringent substances by using the polarization characteristics of light. It can be used for single-polarized observation, cross-polarized observation and conoscopic observation. It’s a method of changing ordinary light into polarized light for microscopic inspection to identify whether a substance is single refraction (anisotropy) or birefringence (anisotropy). Birefringence is the basic characteristic of crystals. Therefore, polarized light microscopes are widely used in minerals, chemistry and other fields. In humans and zoology, polarized light microscopy is often used to identify bones, teeth, cholesterol, nerve fibers, tumor cells, striated muscle, and hair.

Features:

- Improved stress-relieving imaging system, reflective illuminator, lamp room, higher polarization degree and move vivid image effect

- Y-shape roof structure, high rigidity, high stability

- Professional conoscopic observation mirror group

- The 160mm large-diameter metal working platform can be rotate 360 degree smoothly, and locked and positioned at any angle in any time

Items	Specification	M14102
Optical system	Infinity color corrected optical system	●
Viewing head	30° inclined gemel binocular head, interpupillary distance 54~75mm, left diopter ±5 adjustable	●
	30° inclined gemel trinocular head, interpupillary distance 54~75mm, left diopter ±5 adjustable, splitting ratio R:T=100:0or 50:50	○
	30°~60° tilting binocular head, interpupillary distance 54~75mm, left diopter ±5 adjustable	○
Eyepiece	High eye-point wide field plan eyepiece PL10X22mm	●
	High eye-point wide field plan eyepiece PL10X22mm, with reticle	○
	High eye-point wide field plan eyepiece PL15X16mm	○
Objective	LWD plan destressing objective 5X/10X/20X/50X	●
Objective	Plan destressing objective 4X/10X/20X/40X/60X	○
Intermediate tube	With removable internal Bertrand lens, analyzer and compensators. Bertrand lens with rotating switch, centerable, focusing recyclable.	●
Analyzer	Pluggable analyzer, 360°rotatable, 2°increments, precision 6′, with locking device	●
Compensator	Gyps 1λ (Φ18mm,optical path difference 551nm)	●
	Mical 1/4λ (Φ18mm,optical path difference 147.3nm)	○
	Quartz Wedge(Ⅰ-Ⅳ)	○
Nosepiece (with DIC slot)	Revolving centerable quadruple nosepiece	●
Nosepiece (with DIC slot)	Revolving centerable quintuple nosepiece	○
Focus adjustment	Transmitted frame/ Transmitted & Reflected frame/ Reflected frame	●
Focus adjustment	Coarse focus system with upper limited and tension adjustment, coarse range: 30mm, fine precision 0.002mm	●
Stage	Dia.160mm circular metal stage, graphite coating, anti-corrosive and anti-friction, 360° rotatable, 1° increment, precision 6′	●
Condenser	Swing-out achromatic condenser(N.A. 1.2), with 360° rotatable polarizer, four adjustable scale: 0/90/180/270	●
Reflected illumination	Wide-range voltage 100V-240V_AC50/60Hz, 12V/50W halogen lamp house, imported bulb, center presetting, reflected illuminator with LBD filter and pluggable polarizer, field diaphragm and aperture diaphragm adjustable	●
Transmitted illuminator	Koehler illumination, wide-range voltage 100V-240V_AC50/60Hz. 12V/50W halogen lamp house, imported bulb, center presetting, with iris diaphragm	●
Others	Yellow/neutral/IF550/LBD filter for transmitted light	●
	Digital camera adapters: 1X, 2/3, 1/2 focusing C-mount; 3.2X photo eyepiece; photo tube with PK or MD mount; camera relay lens	●
	Mechanical stage, moving range: 30mm*40mm	●
	High precision micrometer, 0.01mm increment	●

Note: ● means standard, ○ means optional
