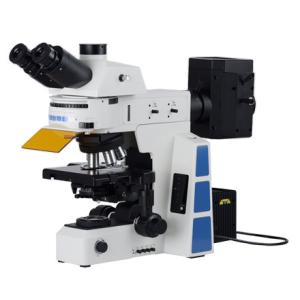

Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope

    Buy cheap Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope from wholesalers

    Buy cheap Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope from wholesalers
    • Buy cheap Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope from wholesalers

    Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope

    Ask Lasest Price
    Brand Name : Phidix
    Model Number : M15102
    Certification : IATF16949,CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 PCS/Month
    Delivery Time : 15-20 Work Days
    • Product Details
    • Company Profile

    Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope


    40X-1000X Binocular Trinocular Fluorescence Microscope Medical Microscope Pathology Microscope


    M15102 40X-1000X Binocular Trinocular Fluorescence Microscope Medical Microscope Pathology Microscope Infinity chromatic aberration correction optical system, with the newly upgraded Kohler lighting system makes clear and bright microscopic images at every magnification.


    Features:


    - It is an infinity fluorescence microscope with excellent optical system.

    - It can be used to for biology, cytology, oncology, genetics and immunology research.


    ItemDescription / Value
    Optical system:Infinity achromatic optical system
    Observation:Bright field and Fluorescence.
    View tube:

    Trinocular, 30 ° inclined, 360° rotation.

    IPD adjustment: 54mm ~ 75mm.

    Diopter adjustment: ± 5 diopters.

    Eyepiece:High eye level wide field WF 10 × (Φ22mm).
    Objective:Infinity Plan achromatic fluorescence objective: 4X/0.1, 10X/0.25, 40X/0.65(Spr.), 100X/1.25(Spr., Oil.), Optional: 20X
    Nosepiece:Standard: Four-position/quadruple. Optional: Five-position/quintuple
    Stage:Double layer mechanical stage, well-coated coaxial with right hand low drive control. Stage size: 210× 142mm. Traveling range(X-Y): 75mm ×50mm. Double specimen holder, with specimen position scale (graduation reading up to 0.1mm). With XY movement stopper.
    Focusing:Coaxial coarse and fine focusing system. Knobs on both sides. Tension adjustment of coarse regulation knob. High sensitive fine focusing knob with minimum adjustment graduation 1um.
    Condenser:NA1.25.With aperture iris diaphragm.
    Illumination system:High light long working life LED lamp for transmitted illumination, brightness adjustable.
    Fluorescence Kit:

    Mercury lamp: 100W/DC for fluorescence illumination. Fluorescence filter: Optional

    Blue: 420-485nm.

    Green: 460-550nm.

    UV: 330-400nm.

    V: 95-415nm.

    Camera adapter:0.5X or 1X C-Mount.
    Camera:Optional
    Power supply:AC100-240V, 50/60Hz.

    Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope
