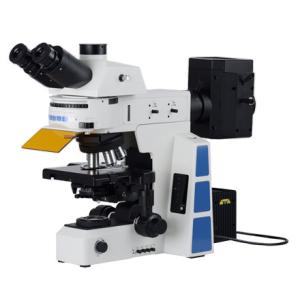

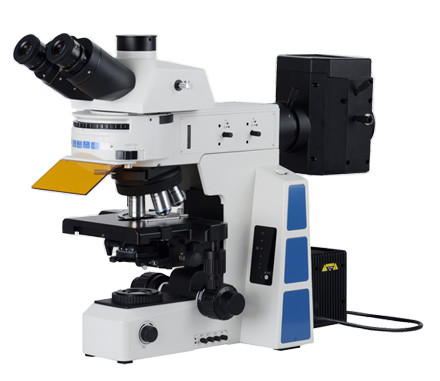

    Trinocular APO Led Fluorescent Microscope PL10x22mm Trinocular Head

    Ask Lasest Price
    Brand Name : Phidix
    Model Number : M15101
    Certification : IATF16949,CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 PCS/Month
    Delivery Time : 15-20 Work Days
    • Product Details
    • Company Profile

    Trinocular APO Led Fluorescent Microscope PL10x22mm Trinocular Head


    Trinocular APO Led Fluorescent Microscope PL10x22mm Trinocular Head


    M15101 Trinocular APO Led Fluorescent Microscope PL10x22mm Trinocular Head Infinity chromatic aberration correction optical system, with the newly upgraded Kola lighting system makes clear and bright microscopic images at every magnification.


    Features:

    • Brand new economic design, stable and reliable system structure, easier and more comfortable operation, suitable for various working environments.
    • The building block type function combination design can add various functional modules such as fluorescence, phase contrast, polarization, dark field, etc. on the basis of bright field.
    • It is widely used in various fields such as clinical diagnosis, teaching experiment, pathology detection, etc.
    ItemsSpecificationM15101
    Optical systemInfinity color corrected optical system
    Viewing headEfficient infinity gemel binocular head, 30°-60° elevation adjustable; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
    30° inclined gemel binocular head; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
    30° inclined gemel trinocular head, splitting ratio R:T=50:50; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
    30° inclined gemel trinocular head (special for fluorescence), splitting ratio R:T=100:0 or 0:100; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
    30° inclined digital binocular head; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
    EyepieceHigh eye-point wide field plan eyepiece PL10x22mm, reticle can be assembled.
    High eye-point wide field plan eyepiece PL15x16mm
    ObjectiveInfinity plan achromatic objectives (2X,4X,10X,20X,40X,100X)
    Infinity plan phase contrast objectives (10X,20X,40X,100X)
    Infinity plan semi-apochromatic fluorescence objectives (4X,10X,20X,40X,100X)
    Nosepiece (with DIC slot)Revolving quadruple nosepiece/ quintuple nosepiece
    BodyCoaxial focus system with upper limited and tension adjustment; coarse range: 30mm; fine precision: 0.002mm; focus height adjustable.
    Stage175x145mm double layer mechanical stage, rotatable; with special fabrication processing, anti-corrosive and anti-friction; X,Y moving hand wheel in right or left hand; moving range: 76x50mm, precision : 0.1mm.
    187x166mm double layer mechanical stage, moving range: 80x50mm, precision: 0.1mm.
    CondenserN.A.0.9 swing-out type achromatic condenser;
    N.A.1.2/0.22 swing-out type achromatic condenser;
    N.A.1.25 quintuple phase contrast condenser;
    N.A.0.9 dry dark field condenser;
    N.A.1.25 oil dark field condenser.
    Reflected fluorescence illumination systemXYRFLP reflected fluorescence Koehler illumination with alterable field diaphragm and aperture diaphragm (center adjustable).
    XYLH100HG mercury lamp house with viewfinder; the center and focal length of viewfinder &filament are adjustable.
    U2-RFLT100 digital power control box of mercury lamp, wide voltage: 90-245VAC.
    Imported OSRAM 100W DC mercury bulb; disc fluorescence filers: UV/VB/G; 30ND25-RFLP attenuation plate.
    Transmitted illumination systemWide voltage: 100-240V, built-in transmitted Koehler illumination; 6V/30W halogen, pre-centered, intensity adjustable.
    Polarizing kitAnalyzer 360° rotatable; polarizer and analyzer can be out of light path.
    FilterYellow, green, blue, neutral filter
    Light splitting deviceR:T=70:30 or 100:0, special 1x CTV
    Camera adapter0.5xCTV, 0.67xCTV, 1xCTV

    Note: ● means standard, ○ means optional
