Auto Light Digital Binocular Biological Microscope WF10X/22mm UIS2 Infinity

Ask Lasest Price
Brand Name :	Phidix
Model Number :	M12115
Certification :	IATF16949，CE
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	1000 PCS/Month
Delivery Time :	15-20 Work Days

Add to Cart

Product Details
Company Profile

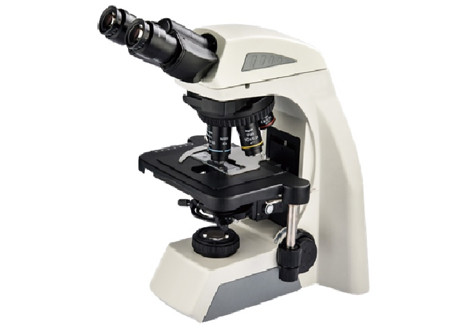

Auto Light Digital Binocular Biological Microscope WF10X/22mm UIS2 Infinity

Binocular Laboratory UIS2 Infinity Optical Biological Microscope With Auto Light Control System

M12115 Binocular Laboratory UIS2 Infinity Optical Biological Microscope With Auto Light Control System. M12115 series has a special optical system which can control the light automatically. It is widely used in various industrial and research labs etc.

Features:

- Rigid and vibrations free frame. Ergonomic designed body.

- ECO system for auto light control.

- UIS2 Infinity optical system.

- LCD panel on the front of the microscope can display the using status of the microscope.

- Competent for research lab, medical lab/hospital.

Item	Description / Value	M12115
Optical system:	UIS2 Universal Infinity Corrected optical system.	●
Frame:	Rigid and vibrations free frame. Ergonomic designed body.	●
Observation method:	Standard: Bright field.	●
	Optional: Dark field, phase contrast, polarizing, fluorescence.	○
View tube:	Anti-fungal Trinocular tube, 30 °inclined, 360°rotating. IPD adjustment: 47mm ~ 78mm, Diopter adjustment: ± 5 diopters.	●
Eyepiece:	High eye level wide field WF10/22mm. Diopter adjustment on one eyepiece.	●
Nosepiece:	Quintuple revolving Nosepiece with inward tilt with a slot for analyzer or DIC slider.	●
Objective:	Infinity Plan Achromatic objective lens(anti-fungal): 4X/0.1, 10X/0.25, 20X/0.4(Optional), 40X/0.65(spr), 100X/1.25.	●
Stage:	Rectangular mechanical fixed stage, well-coated coaxial with right hand low drive control. Traving range(X-Y): 78mm ×54mm, Precision: 0.1mm. Stage size (WxD): 230mmx150mm. Double specimen holder, with specimen position scale (graduation reading up to 0.1mm). Stage XY movement stopper. Millimeter can move in In X&Y direction. Sample click can carry 2 sample slides.	●
Focusing mechanism:	Coaxial positioning system. Tension adjustment of coarse regulation knob. Vertical stage movement 37.7mm with coarse adjument stopper. Torque adjustment for coarse adjustment knobs. High sensitive fine focusing knob with minimum adjustment graduation 1um.	●
Conderser:	NA1.25.With aperture iris diaphragm.	●
LCD panel:	LCD on the front of the microscope can display the using status of the microscope.	○
ECO:	ECO sysrtem with motion sensor. When operator leaves, it can automatically turn off the light for long life pf bubles.	○
Illumination:	Built-in koehler illumination for transmissted light. Light power LED 3W (precentered). Light intensity LED indicator. Light preset switch for photography, built in filterss (LBD-IF, ND6, ND25).	●
Camera:	Optional	○
Power supply:	AC100-240V, 50/60Hz	●

Note: ● means standard, ○ means optional
