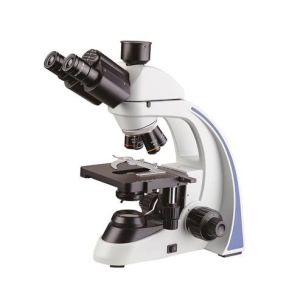

WF10X 40X 100X 1000X Computer Lab Biological Microscope Digital Camera

    Buy cheap WF10X 40X 100X 1000X Computer Lab Biological Microscope Digital Camera from wholesalers

    Buy cheap WF10X 40X 100X 1000X Computer Lab Biological Microscope Digital Camera from wholesalers
    • Buy cheap WF10X 40X 100X 1000X Computer Lab Biological Microscope Digital Camera from wholesalers
    • Buy cheap WF10X 40X 100X 1000X Computer Lab Biological Microscope Digital Camera from wholesalers

    WF10X 40X 100X 1000X Computer Lab Biological Microscope Digital Camera

    Ask Lasest Price
    Brand Name : Phidix
    Model Number : M12110
    Certification : IATF16949,CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 PCS/Month
    Delivery Time : 15-20 Work Days
    • Product Details
    • Company Profile

    WF10X 40X 100X 1000X Computer Lab Biological Microscope Digital Camera


    High Quality 1000X Trinocular Biological Microscope With Digital Camera Connect To Computer


    M12110 High Quality 1000X Trinocular Biological Microscope With Digital Camera Connect To Computer It’s with a stable and reliable system structure, easier and more comfortable operation are suitable for various working environments.


    Features:


    • Teaching trinocular microscope with an inbuilt camera.
    • Ideal for teaching purposes, Designed for observing and projecting specimens in 3D.
    • Compatible to data projectors, Suitable for histology, microbiology, botany, virology and routine research applications.
    • Quality optics for showing the detail and color of any specimen.
    • Connectible to computer, television and projector (USB and HDMI)

    ItemDescription / ValueM12110
    Theory:Biological microscope
    Body:Ergonomics designed rigid frame. With handle for carry. All metal material with cover. Anti-fungi, anti-bacteria.
    Optical system:Plan achromatic optical system
    Observation method:Bright field
    View tube:

    Binocular/Trinocular head, 30 ° incling, 360°rotating.

    Diopter adjustment on the left eyepiece.

    Adjustment of inter-pupillary distance 50-75mm.

    Eyepiece:Wide field WF10X / 18
    Optional 16X
    Objective:Plan Achromatic Plan 4X/0.10, 10X/0.25, 40X/0.65(Spring loaded), 100X/1.25(Spring loaded and oil immersion)
    Nosepiece:Quadruple reversed angle nosepiece, revolver with rotation on ball bearings
    Illumination:White LED lamp illuminator. LED power: 3W, Color temperature: 6300K
    Focusing mechanism:

    Coaxial positioning system. Movement by roller guider (Roller and pinion). Rubber grip around fine and coarse adjust knob.

    Tension adjustment of coarse regulation knob.

    Upper limit stopper for protecting the lens and sample.

    Stage:

    Mechanical double layer stage, platinum with overhang, dimensions 155x145 mm.

    Moving range: 76mm ×52mm.

    Vernier scale on both axes of movement with an accuracy of 0.1mm.

    Condenser:Removable Abbe condenser, NA1.25 with aperture iris diaphragm.
    Camera:

    5MP digital camera for microscope with USB and HDMI ports.

    Connectible to computer, television and projector.

    Software for win7/win10.

    Accessories:Manual, dust cover, power cord of local standard.
    Power supply:AC100-240V, 50/60Hz.

    Note: ● means standard, ○ means optional


    Packaging: 48.5*30.5*55.5CM

    Weight: 7kg
