    Multi Head WF10X Lab Biological Microscope For Medical Students Achromatic Optical

    Ask Lasest Price
    Brand Name : Phidix
    Model Number : M12118
    Certification : IATF16949,CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 PCS/Month
    Delivery Time : 15-20 Work Days
    • Product Details
    • Company Profile

    Multi Head WF10X Lab Biological Microscope For Medical Students Achromatic Optical

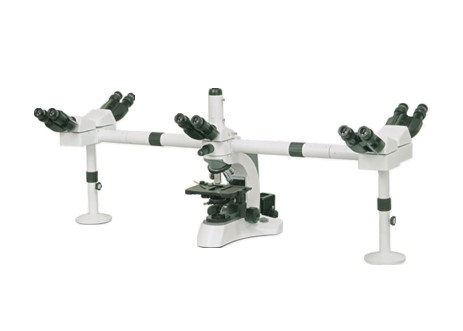

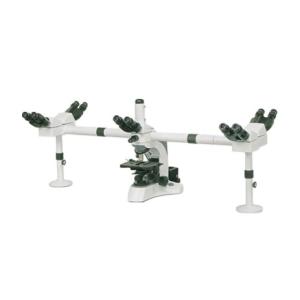

    Multi Head Biological Microscope 5 Heads Microscope


    M12118 Multi Head Biological Microscope 5 Heads Microscope. M12118 is mainly designed for 5 people to observe at the same time. It’s meaningful in co-working area, for example, teaching demonstration.


    Features:


    - Equipped with 5 Heads for 5 persons observing at the Same Time.

    - Infinite Optical System.

    - It is widely used in Clinic, Research and Teaching Demonstration.


    ItemDescription / Value
    Optical system:

    Infinity Plan Achromatic optical system.

    Standard: Bright field

    Optional: Dark field, phase contrast, fluorescence, polarizing.

    View Tube:30°inclined binocular head / trinocular head. 360° rotatable.
    Eyepiece:WF 10X/22mm.
    Objective:Infinity Plan achromatic objectives: 4X/0.1, 10X/0.25, 40X/0.65(Spr), 100X/1.25(Oil, Spr.).
    Nosepiece:QUADRUPLE Nosepiece.
    Stage:

    Built-in double layer mechanical stage. Rectangular size 180 × 160mm.

    X & Y travel range: 80x50mm. Moving accuracy: 0.1mm

    Condenser:Kohler type N.A. 1.25 condenser with Iris diaphragm.
    Focusing mechanism:Coaxial coarse & fine focusing mechanism. Stopper to protect slides and objectives from damage.
    Light source:12V/100W halogen lamp or LED light.
    Power supply:Input AC100V-250V, 50Hz/60Hz.

    Multi Head WF10X Lab Biological Microscope For Medical Students Achromatic Optical
