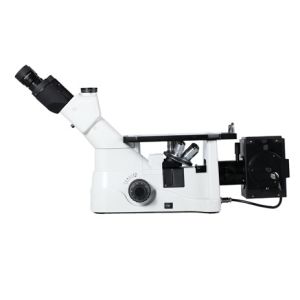

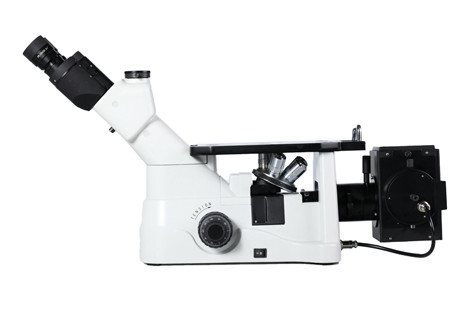

Professional Manufacture Optical Polarizing Inverted Metallurgical Microscope

M13101 Professional Manufacture Optical Polarizing Inverted Metallurgical Microscope Optical system: Infinity chromatic aberration correction optical system (CSIS), with better image quality, higher resolution, and more comfortable observation.

Features:

- Eyepieces and objective lenses: high eye-point, ultra-wide field of view plan eyepieces, PL10x/22mm, provide a wider and flat observation space and can be equipped with various types of micrometers for measurement, infinite plan achromatic long work Distance to professional metallographic objective lens, no cover glass design.

- Observation tube: hinged trinocular, adjustable diopter, 45° tilt, can be used for photography, capture and save observation images, configure computer and professional software to realize image analysis

- Focusing mechanism: low-hand position coarse and fine adjustment coaxial focusing mechanism, with coarse adjustment device for tightness adjustment, the stroke of coarse adjustment is 38mm per revolution, and the precision of fine adjustment is 0.002mm.

- Illumination system: Reflective Kola illuminator with iris diaphragm and center adjustable field diaphragm, adaptive 90V-240V wide voltage, 12V50W imported halogen lamp, effectively protect and extend the service life of halogen bulbs.

- Stage: Coaxial low-hand position adjustment movable ruler and stage extension board can be added to expand the application space and meet the needs of customers with different needs.

Phidix Motion Controls (PMC) started the business in 2004, originally as an international trading company-Shanghai Phidix Trading Co., Ltd (Headquarter of PMC), and became the only authorized Cable Assembler in China by the American based company Cablecraft Motion Controls (CMC) in 2011. CMC was originally a subsidiary of Tuthill Group (more than 100 years history), headquartered in New Haven Indiana US and became independent in 2011. CMC can offer diverse high-end drive control products and engineering solutions.

Phidix, one of the independent brands of PMC, represents diversified microscope series products, covering optical metallurgical microscope, student biological microscope, lab biological microscope, inverted optical microscope, optical polarizing microscope and led fluorescent microscope etc., providing customers with high quality products, and OEM for international first-class brands. Phidix microscope products can be applied widely to the reasearch and industrial applications.

Today, thousands of personalized products designed and produced by PMC in China are selling to all over the world.
